- Standard:ASTM
- Standard:GB
- Standard:JIS
- Place of Origin:CN;JIA
- Shape:U Channel
- Perforated Or Not:Is Perforated
- Tolerance:±1%
- Processing Service:Bending
- Processing Service:Decoiling
- Processing Service:Cutting
- Grade:JIS G3101 SS400/ ASTM A36
- Brand Name:Huaye
- Application:Industry

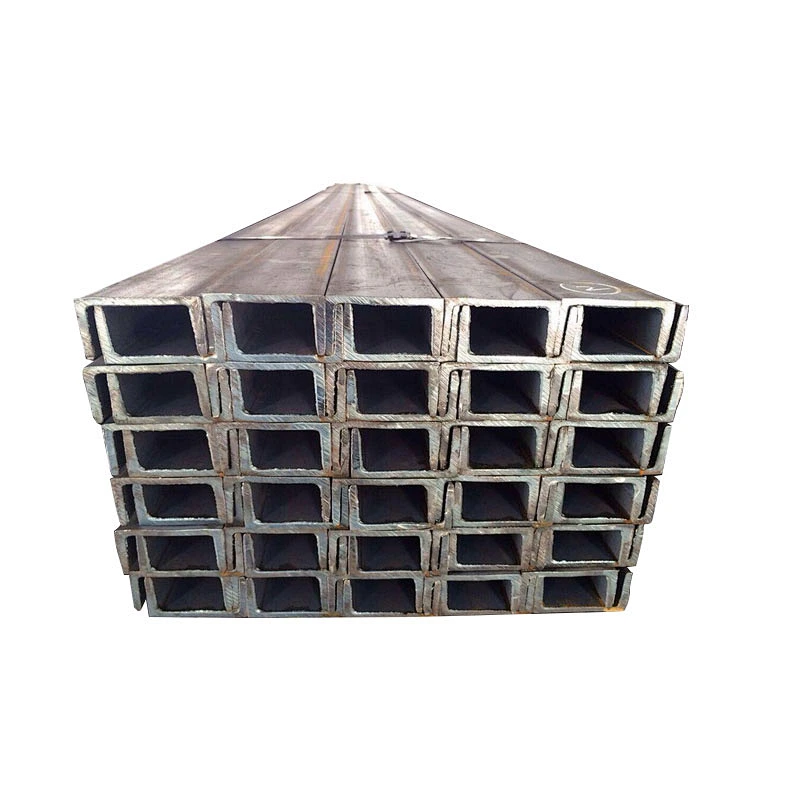

- Name:U Channel With JIS G3101 SS400/ ASTM A36/EN 10025 S275JR
- Length:Customer's Requiremnts
- Certificates:ISO14000
- Supply ability:10000MT PER MONTH
- MOQ:25MT
Width*Width*Depth(mm) | Waist Depth (mm) | Leg Depth (mm) | Theoretical Weight (kg/m) |
50*25 | 4 | 6 | 3.8 |
75*40 | 3.8 | 7 | 5.3 |
75*40 | 4 | 7 | 5.6 |
75*40 | 4.5 | 7 | 5.85 |
75*40 | 5 | 7 | 6.92 |
100*50 | 3.8 | 6 | 7.3 |
100*50 | 4.2 | 6 | 8.03 |
100*50 | 4.5 | 7.5 | 8.97 |
100*50 | 5 | 7.5 | 9.36 |
125*65 | 5.2 | 6.8 | 11.66 |
125*65 | 5.3 | 6.8 | 12.17 |
125*65 | 5.5 | 8 | 12.91 |
125*65 | 6 | 8 | 13.4 |
150*75 | 5.5 | 7.3 | 14.66 |
150*75 | 6.5 | 10 | 16.71 |
150*75 | 5.5 | 10 | 17.9 |
150*75 | 6.5 | 10 | 18.6 |
150*75 | 9 | 12.5 | 24 |
